Sonoma County Building/Parcel/Address Import
Based on https://github.com/Nate-Wessel/hamilton-import
Project Status
For current project status see https://wiki.openstreetmap.org/wiki/Sonoma_County_Building_and_Address_Import
Screenshots
Here is the project status as of Jan 13 2021.
- 106,930 new buildings would be inserted with addresses (green) (non-conflated, with addresses)
- 139,987 new buildings would be inserted without addresses (non-conflated, no address)
- 18,867 buildings already exist with addresses and would not be inserted
- 13,226 buildings already exist without addresses and would not be inserted

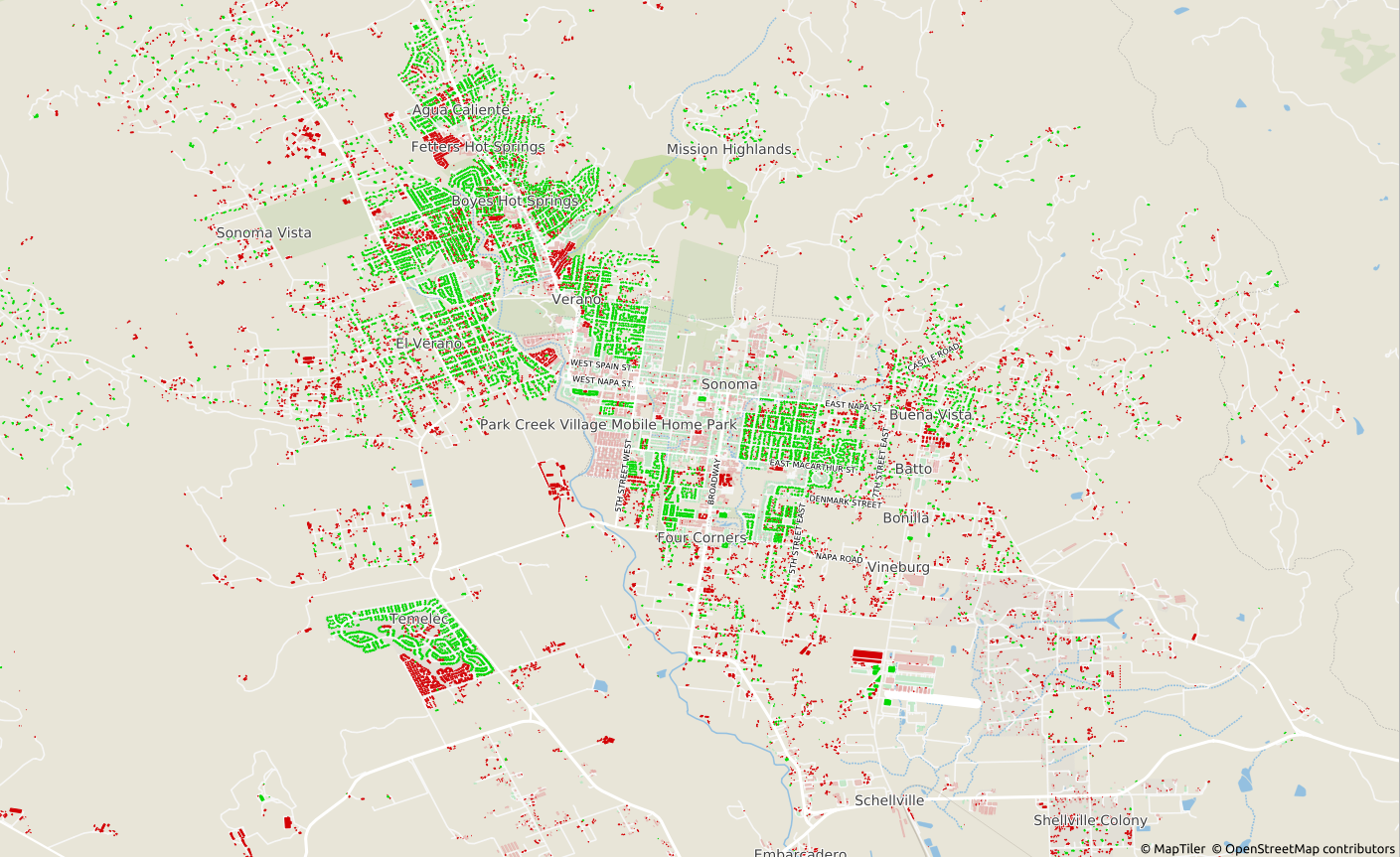

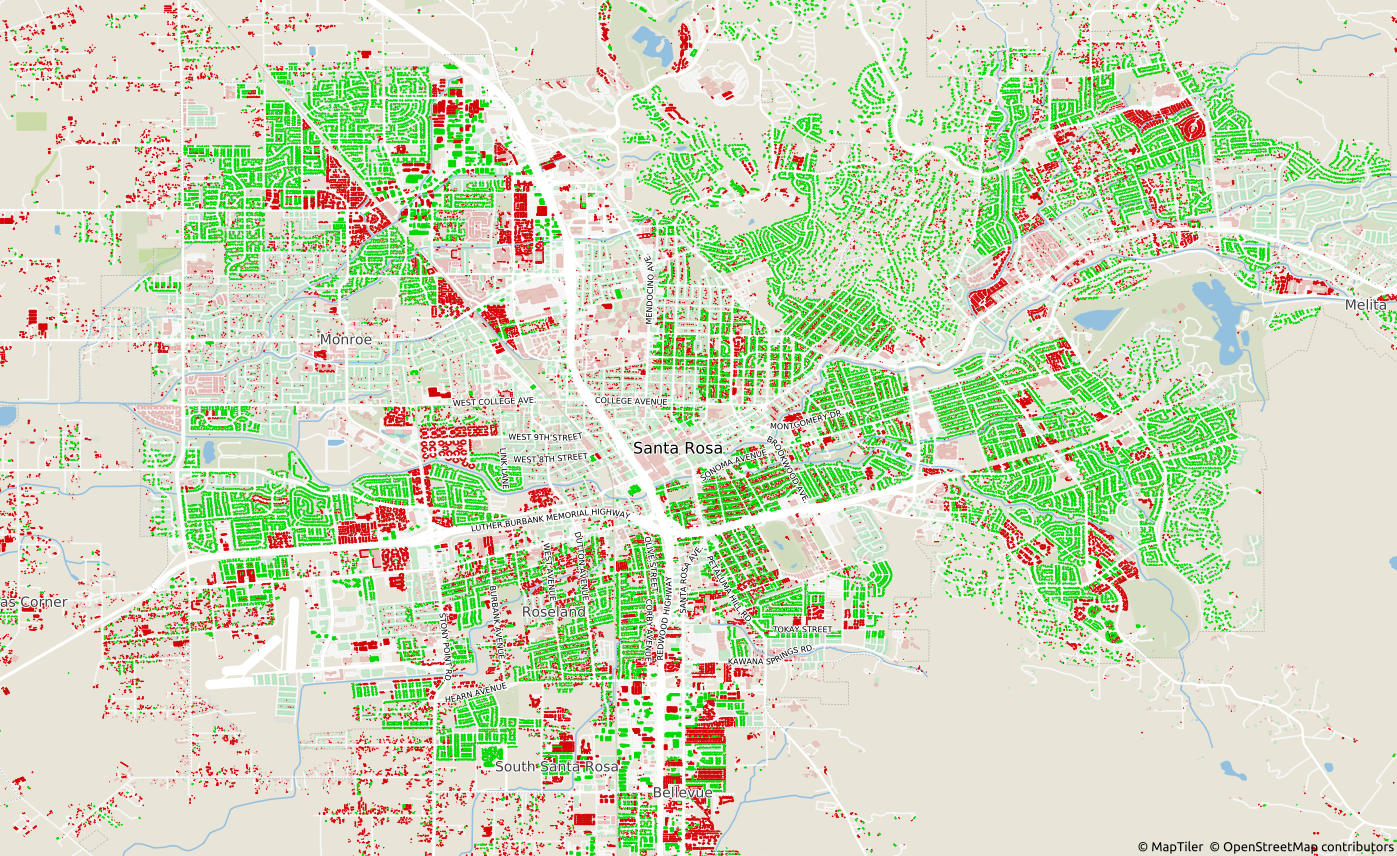

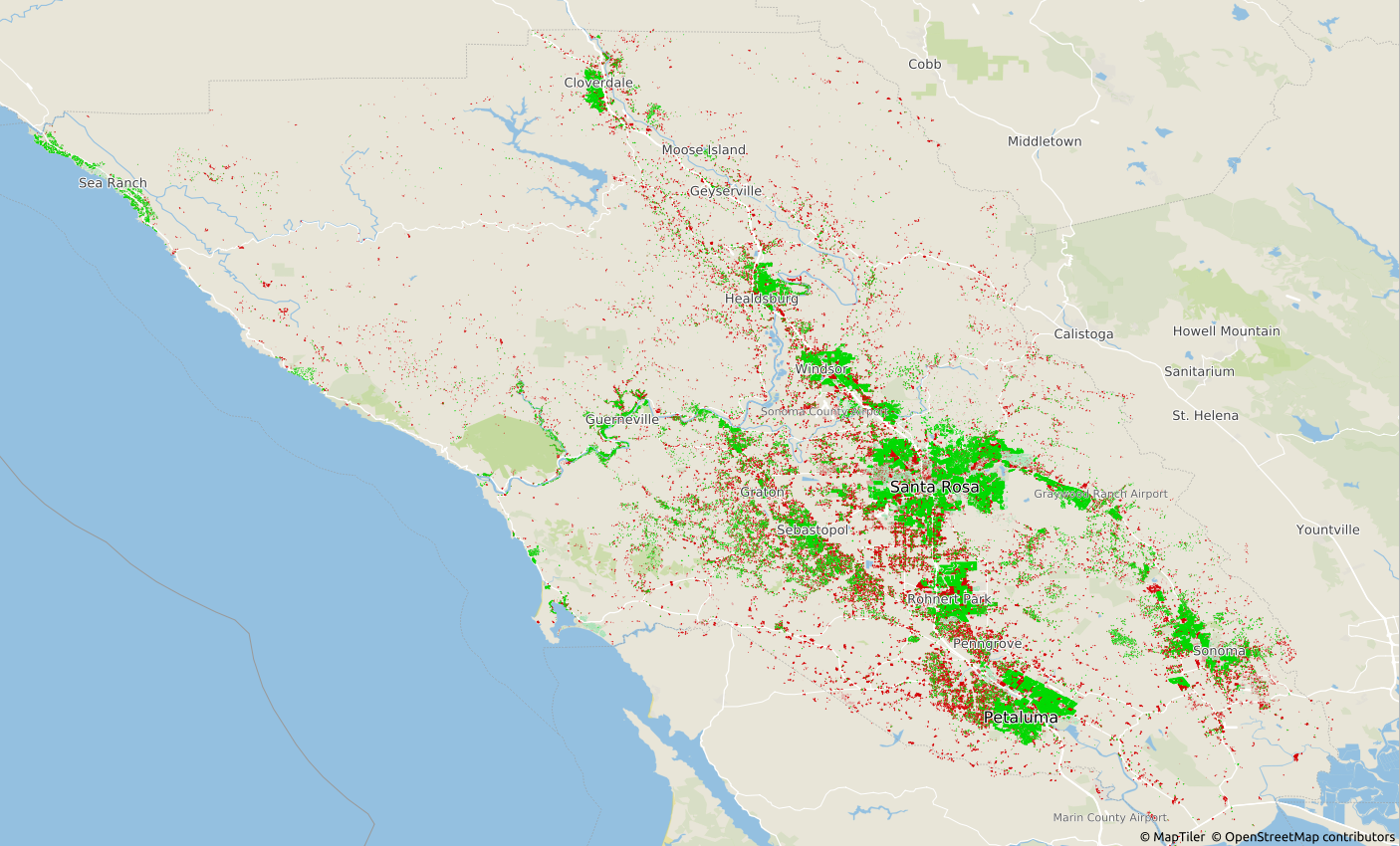

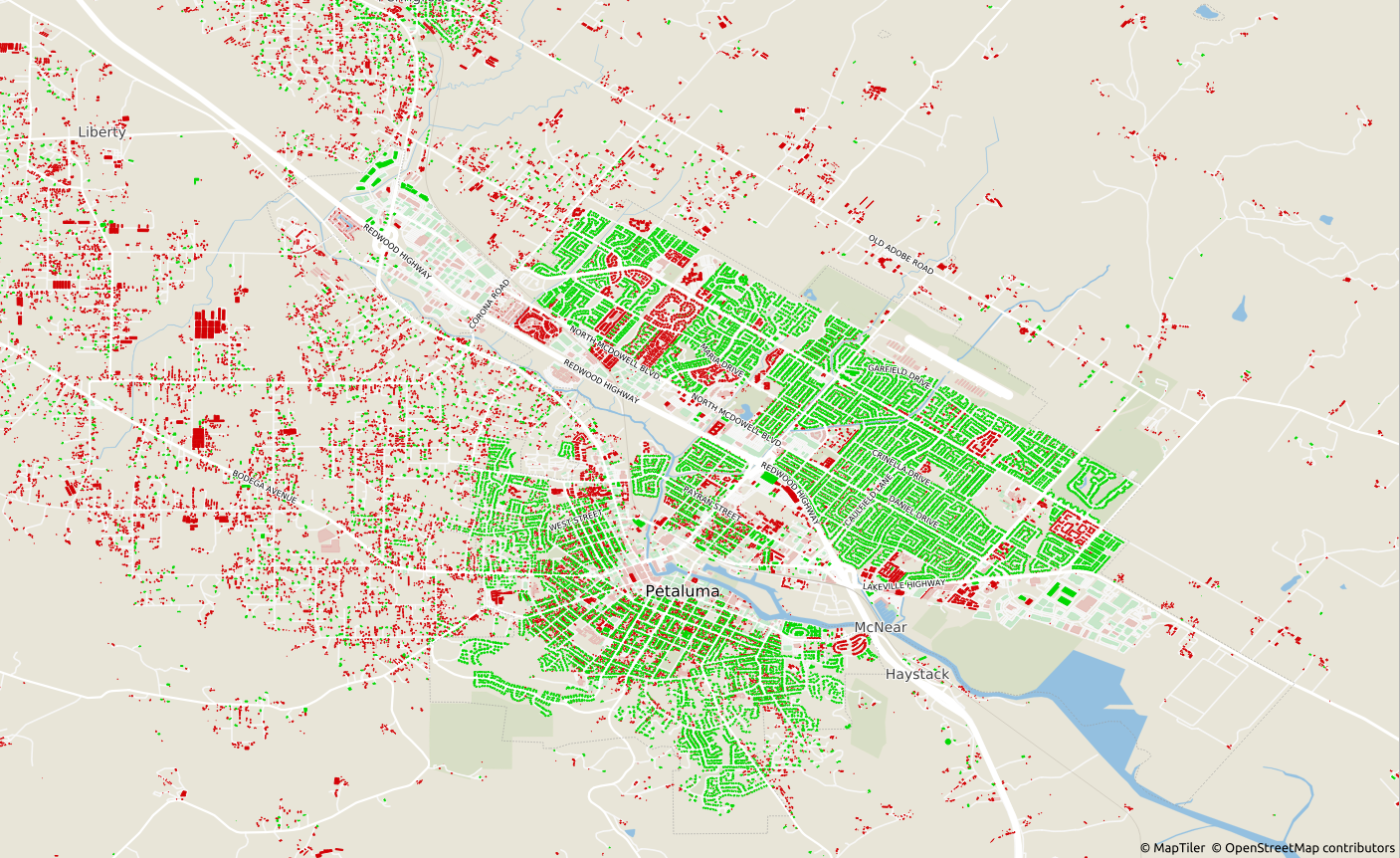

Here are sample screenshots of Sonoma County, Santa Rosa, the City of Sonoma, and Petaluma:





Obtaining Data
original_data
from:
- https://gis-sonomacounty.hub.arcgis.com/datasets/2202c1cd6708441f987ca5552f2d9659
- https://gis-sonomacounty.hub.arcgis.com/datasets/0f5982c3582d4de0b811e68d7f0bff8f
- https://overpass-turbo.eu/
Overpass query (you may save as OSM file, shapefile, or postgres sql dump depending on your overpass client)
area[name="Sonoma County"];
(
way[building](area);
relation[building](area);
);
(._;>;);
out;
If using an Overpass -> QGIS -> Postgres dump, save it as osmquery_buildings_pgdump.sql
for later.
Otherwise osm2pgsql should create tables like son_polygon
for later.
Prerequisites
The postgis package appropriate for the version of postgres server you have installed (in my case, 11)
Ubuntu
- sudo apt install postgresql-11 postgresql-11-postgis-3 shp2pgsql osm2pgsql
Debian (shp2pgsql is included in postgis)
-
sudo apt install postgresql postgis osm2pgsql
-
The postgresql server started/running/configured and database
gis
created
Running
- Run the following SQL as a superuser (postgres) inside the
gis
database to enable the PostGIS and hstore extensions:CREATE EXTENSION postgis; CREATE EXTENSION hstore;
- Unzip the
original_data
and open a shell in that folder. - Here we are assuming that county data is in WGS84/EPSG4236 format, which was true as of last check and is also what OSM uses.
- Run from your shell:
shp2pgsql -s 4326 -I Parcels__Public_.shp | psql -d gis -U postgres -W
shp2pgsql -s 4326 -I Sonoma_County_Building_Outlines.shp | psql -d gis -U postgres -W
shp2pgsql -s 4326 -I osm-buildings-01-03.shp | psql -d gis -U postgres -W
Now all the data is in Postgres. For processing and conflation, read through and execute conflation.sql
as per your comfort level.
Internal Notes
shp2pgsql -s 4326 -I Parcels__Public_.shp | psql -d openstreetmap -U openstreetmap -W -h localhost -p 54321
shp2pgsql -s 4326 -I Sonoma_County_Building_Outlines.shp | psql -d openstreetmap -U openstreetmap -W -h localhost -p 54321
psql -d openstreetmap -U openstreetmap -W -h localhost -p 54321 -f osmquery-pgdump.sql
#unused
osm2pgsql -d gis -c --prefix son --slim --extra-attributes --hstore --latlong sonoma-orig-buildings-20201219.osm -U postgres -W`
osm2pgsql -d openstreetmap -c --prefix son --slim --extra-attributes --hstore --latlong norcal-latest-20200103.osm.pbf -U openstreetmap -W -H localhost -P 54321
